Gate Valve Cover
Cover Capsule Locks, prevent access to valves which don't typically have a lockable element. The lockout system contains two semi circular covers. These fit over a valve handle or panel port. A padock can be subsequently fitted to prevent external manipulation.
Available in multiple sizes to accommodate handle sizes from 1" to 10"
Want a customised solution, samples or to order in bulk? Reach out to our experts at hello@thelockbox.ch.
Regular price
€17,95
| Colour: | Red |
| CVC001 - Fits Valve Handle Size: | 25mm to 64mm (1" to 2.5" - Size) |
| CVC002 - Fits Valve Handle Size: | 64mm to 127mm (2.5" to 5" - Size) |
| CVC003 - Fits Valve Handle Size: | 127mm to 165mm (5" to 6.5" - Size) |
| CVC004 - Fits Valve Handle Size: | 165mm to 254mm (6.5" to 10" - Size) |
| CVC005 - Fits Valve Handle Size: | 254mm to 330mm (10" to 13") |
| CVC001 - Dimensions (L x W): | 80mm x 30 mm |

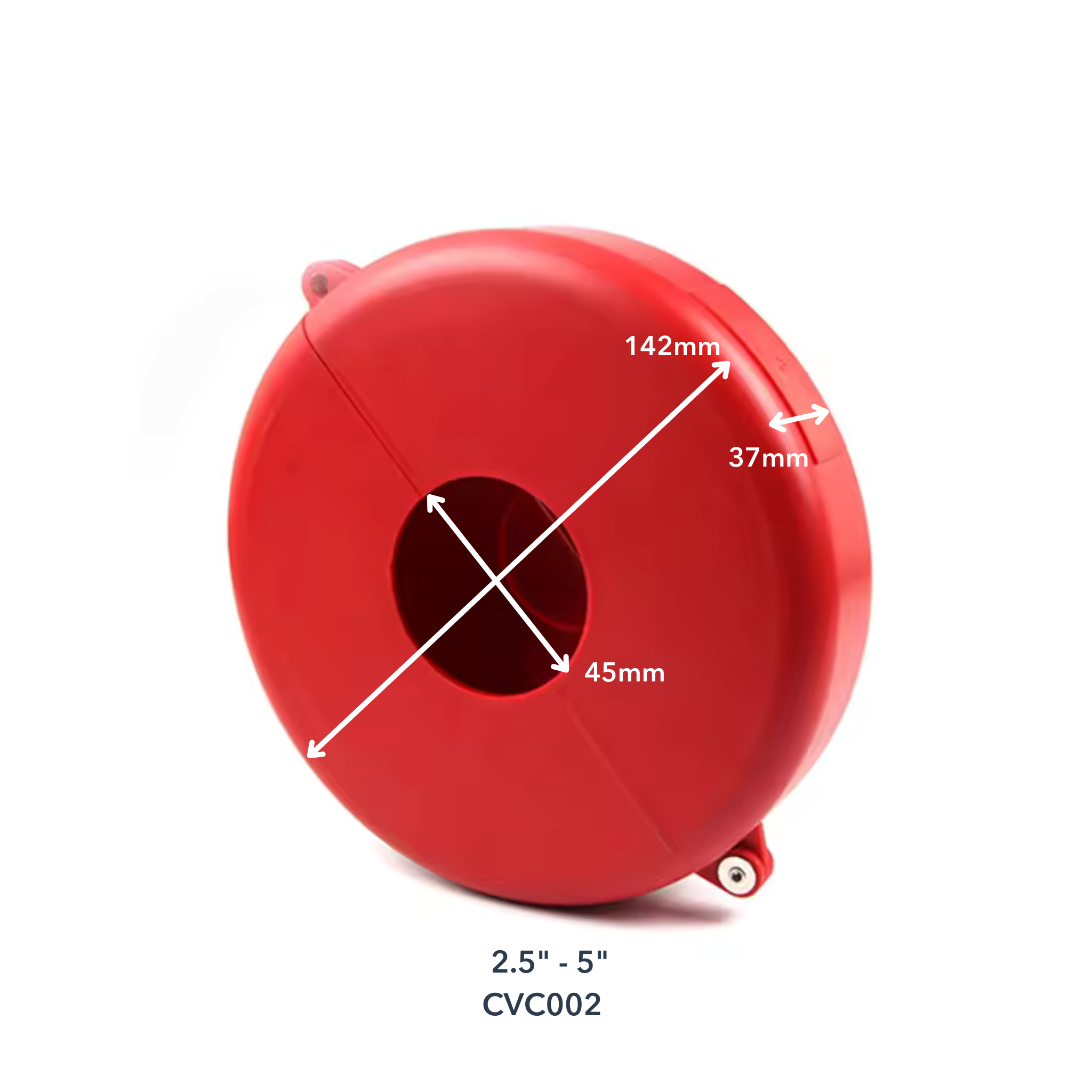

| CVC002 - Dimensions (L x W): | 142mm x 37 mm |

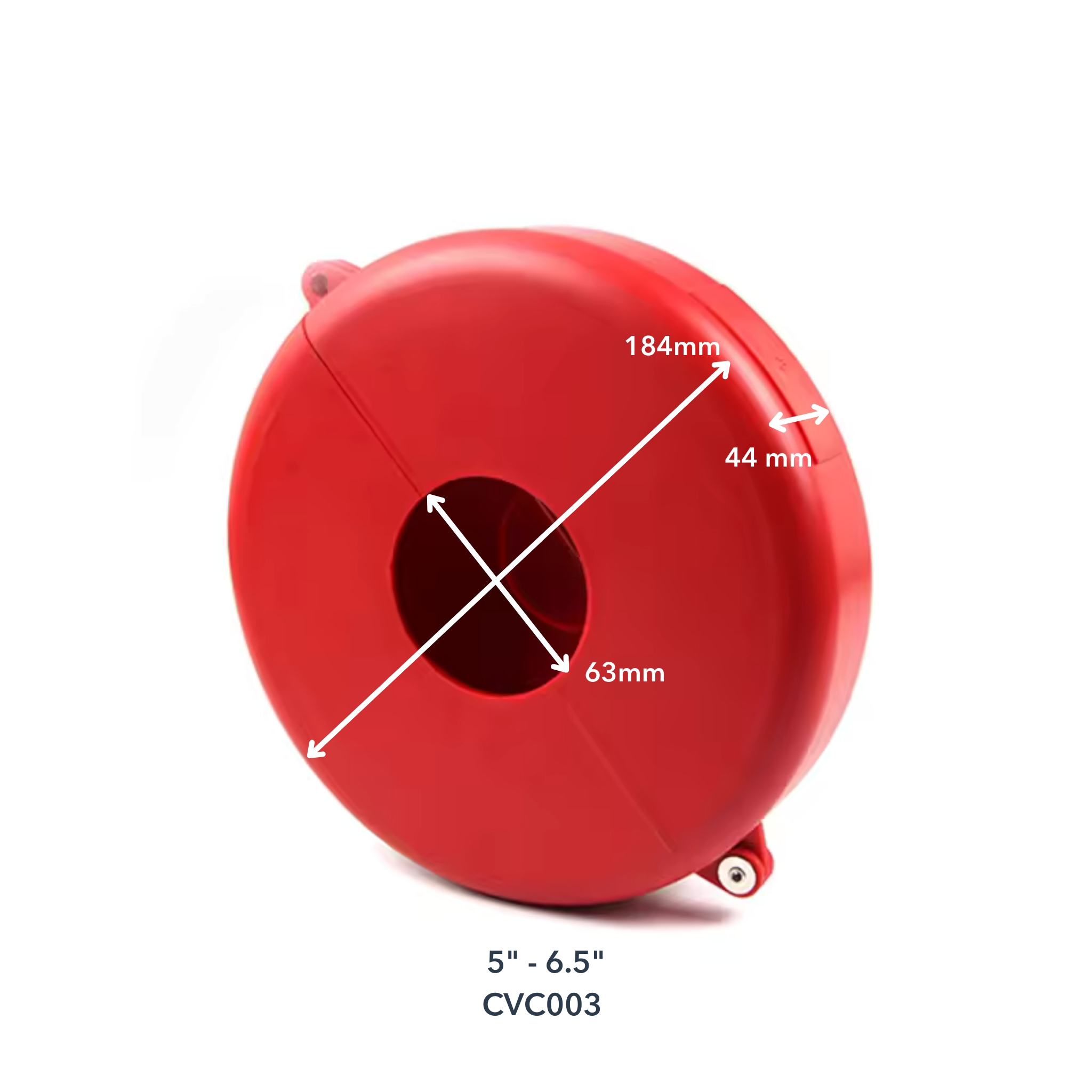

| CVC003 - Dimensions (L x W): | 184mm x 44 mm |
| CVC004 - Dimensions (L x W): | 280mm x 67 mm |
| CVC005 - Dimensions (L x W): | 364mm x 67 mm |
| Material: | Durable ABS Plastic |
| Padlock hole diameter: | 7mm |
| Usage: | Chemical, Food & Beverage, Pharmaceutical, Water Utilities |
